Product Dimensions 5.24"h x 30"w x 19.68"d

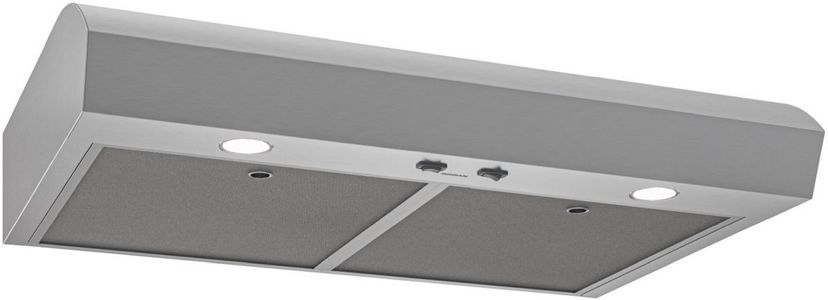

From the leader in residential indoor air quality, this under-cabinet range hood by Broan-NuTone is built to surpass industry standards with over 50 points of inspection, engineered as a reliable ventilation solution.Read More
The durable hood vent is up to 20% more effective at removing pollutants than the leading competitor with power ventilation at 350 Max Blower CFM to capture and remove smoke and odors from the kitchen. The Mantra range hood is also up to 44% quieter: 1.5 sones is equivalent to a refrigerator running, so it won't interfere with daily life. The EZ1 Install System allows for a quick and easy 1-person installation, and the ENERGY STAR Certification is both code compliant and provides cost savings. The 1-Level LED lighting and a 2-Speed hidden rocker controls make cooking a breeze. At Broan-NuTone we believe that better quality of air means better quality of life.
50 Points of Inspection: Expect a durable, long-standing ventilation solution engineered by the leader in indoor air quality
20% More Effective: Trust in the Broan-NuTone brand to more effectively remove pollutants in your kitchen than the leading competitor, with strong airflow at 350 Max Blower CFM
Up to 44% Quieter: With sound equivalent to a refrigerator running, this vent hood is up to 44% quieter than competition at 1.5 sones on working speed
One Person Installation: With the included EZ1 brackets it's an easy install for a single person in half the time, both professional and DiYers
Both ENERGY STAR certified and Title 24 compliant (with electric ranges only), this kitchen hood is energy efficient and code compliant
Bright 1-level, heat resistant LED modules (bulbs included) to enhance your cooking experience
Easy-to-clean, fully enclosed bottom with 2 dishwasher-safe high efficiency micro filters
The hidden rocker switches control the 2-speed fan and 1-level lighting
Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30)
Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately)
Can be used with optional Universal make-up air damper MD6TU, MD8TU or MD10TU to replace air exhausted out of the house only when the hood is turned ON, helping with ventilation to keep your home fresh while reducing energy consumption
Can be installed for ADA Compliance with the purchase of model HAWSK3 low voltage wiring and wall switch kit
General Specs | |
Width (in.) | 30 |
Height (in.) | 5.24 |
Duct Size (in.) | 7" |
Depth (in.) | 19.68 |
Collection | MTR1 Series |
Color | Stainless Steel |
Manufacturer Warranty | 1 Year Parts & Labor / 5 Years LED |
Color Finish Name | Stainless Steel |
Range Hood Type | Under Cabinet |
ADA Compliant | Yes |
ENERGY STAR Certified | Yes |
Outdoor Approved | No |
Appliance Fit Width (in.) | 30 |
Product Weight (lbs.) | 21 |
Smart Compatible | No |
Maximum CFM | 350 |
Bulb Type | LED |
Grease Filter Type | Aluminum Mesh |
Sones Rating | 1.5 |
Fan Speed Options | 2 |
Height Above Cooktop | 18 |
Ventilation Direction | Vertical/Horizontal |
Voltage | 120 |
Amp | 0.8 |
Frequency | 60 |
Range Hood Features | Ductless Capable, Light, Removable Grease Filter |
Noise Level (Sones) | Quiet - (Low) |
Ventilation Type | Convertible (Both) |
